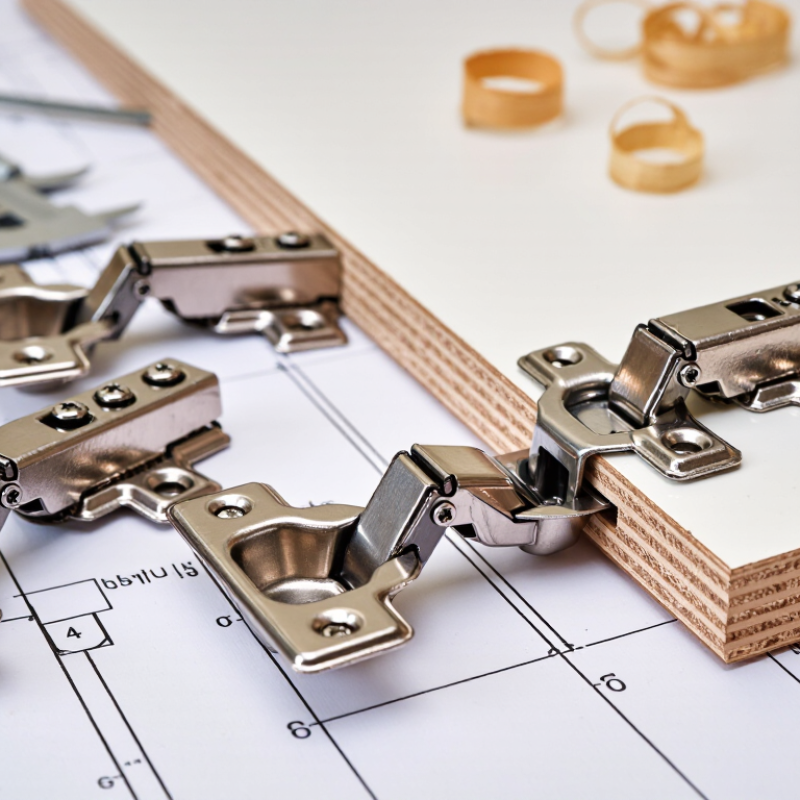

How to Choose the Best Heavy Duty Hidden Hinge

Choosing a Heavy Duty Hidden Hinge is not just a matter of picking the strongest-looking model. The right choice depends on the door’s weight, dimensions, material, opening angle, and daily use. A hinge that works well on a small cabinet may sag or bind on a tall, frequently used door. Check the manufacturer’s load rating, but treat it as one part of the decision. Installation accuracy matters, too. A slight misalignment can leave the door rubbing against its frame.

Design researcher Don Norman offers a useful principle: “Good design is actually a lot harder to notice than poor design.” Applied here, a well-chosen hinge should move smoothly and stay out of sight without making adjustment difficult. Look for clear installation guidance, durable materials, and adjustment options suited to the door and frame. Ask how the rating was tested, and whether it applies to your exact setup. Details matter.

There is no perfect hinge for every project. Even a high-capacity model can disappoint when the mounting surface is weak or the door is poorly balanced. That part is easy to overlook. This guide explains how to compare specifications, assess construction, and match a Heavy Duty Hidden Hinge to its intended use. It also highlights questions worth asking before purchase, because product descriptions do not always tell the whole story. A careful choice now can prevent a stubborn door later.

Table of Contents [Hide]

1 Understand How Heavy-Duty Hidden Hinges Work

2 Assess Door Weight, Size, and Usage Requirements

3 Compare Hinge Materials, Load Ratings, and Adjustability

4 Check Frame Compatibility and Installation Requirements

5 Evaluate Durability, Safety, and Maintenance Needs

Understand How Heavy-Duty Hidden Hinges Work

A heavy-duty hidden hinge carries a door through a concealed pivot, knuckle, or linked-arm assembly. The arms transfer the door’s weight into the frame while allowing it to swing without exposed leaves. Some designs also use adjustable cams, so installers can correct small alignment shifts after the door is hung. Geometry matters: a wide, heavy door creates more leverage than a narrow one of equal weight.

For cabinet-style concealed hinges, ANSI/BHMA A156.9-2020 assesses performance through tests that include repeated cycling and load. Its cycle requirements vary by grade; Grade 1 testing reaches 100,000 cycles, while Grade 2 reaches 25,000. These figures help compare tested hardware, but they are not a promise that every door will last that long. Door size, installation accuracy, and how often it is opened all affect service life. That distinction matters.

When assessing a specification, check the tested door weight and dimensions, not just a headline load rating. A hinge may support the stated weight yet sag if the door is unusually wide or poorly aligned. I would also inspect the pivot and fasteners: small clearances, loose screws, or a distorted frame can make smooth movement feel rough. One caveat: cabinet-hinge test data should not be treated as proof for a full-size architectural door; the application and test category must match.

Assess Door Weight, Size, and Usage Requirements

Choosing a heavy-duty hidden hinge starts with the door, not the hinge label. Weigh the complete door, including glass, cladding, handles, and attached hardware. A solid-core door may feel manageable on a bench, then strain its hinges once mounted. Record its height, width, thickness, and opening direction. Width matters: a wide door creates more leverage, even when its weight seems modest. Check the hinge’s stated capacity, and confirm whether that rating assumes a particular hinge count and spacing. Details matter.

Usage changes the decision. A pantry door opened a few times daily has different demands from a busy corridor door that swings hundreds of times. Consider slamming, a door closer, nearby traffic, and whether the door must hold a fixed position. Ask an installer to assess the frame and fixing material; strong hinges cannot compensate for weak screws or soft timber. Also check opening angle, adjustment range, and clearance from nearby walls. Don’t guess. Compare the measured door with the hinge’s installation data, then seek technical advice if its dimensions or duty cycle fall outside the examples. Real doors are imperfect: frames can be slightly out of square, and an initial estimate can miss that. After fitting, check for sag, rubbing, or uneven gaps.

Compare Hinge Materials, Load Ratings, and Adjustability

How to Choose the Best Heavy Duty Hidden Hinge

Compare Hinge Materials, Load Ratings, and Adjustability

A heavy-duty hidden hinge should match the door’s weight, size, and use—not just look substantial. Stainless steel can suit damp areas, while coated steel may work well indoors. Zinc alloy is often used for lighter applications, but its strength depends on the hinge design. Check the finish and fasteners too; a strong hinge attached with short screws can still loosen. Small details matter.

Read the load rating carefully. Some manufacturers rate a pair of hinges, while others list capacity per hinge. Confirm which applies, and allow a margin for frequent opening or a wide, heavy door. A rating alone cannot account for every installation. Door thickness, frame material, and mounting accuracy all affect performance. I’ve seen careful comparisons miss the frame—the part that may flex first.

Tips: Look for adjustment in three directions: height, side-to-side, and depth. This helps correct small gaps after installation. Before buying, compare the hinge’s dimensions with the door and frame, then check whether adjustments remain accessible once fitted. Take measurements twice. Even experienced installers can overlook clearance.

Check Frame Compatibility and Installation Requirements

Before choosing a heavy-duty hidden hinge, check the door and frame as a pair. Record door thickness, weight, material, frame depth, and the required opening angle. A hinge rated for a heavy door may still fail to fit a shallow frame or narrow reveal. Measure the clearance at the hinge edge, too. Small gaps matter.

Check the manufacturer’s routing template and fastener requirements before ordering. Solid timber, hollow metal, and aluminum frames need different reinforcement and screw engagement. Confirm that the frame can accept the hinge’s full mortise depth and that nearby seals or trim will not obstruct movement. ANSI/BHMA A156.1 provides durability classifications for applicable hinges; its Grade 1 cycle test reaches 2.5 million cycles. This is a useful benchmark, not proof that a hinge suits every concealed installation. A high rating can look reassuring, but it does not resolve an incompatible frame.

Tips: Make a full-size paper template and test it against the frame before cutting. Verify load capacity for the actual door, including hardware. Check swing clearance with the door open. If the frame material or reinforcement is uncertain, ask a qualified installer to inspect it first. I would not assume the existing screw holes are strong enough.

How to Choose the Best Heavy Duty Hidden Hinge - Check Frame Compatibility and Installation Requirements

Hinge type	Common frame compatibility	Typical adjustment	Frame and door preparation	Installation requirements	Best suited to	Checks before selection
3D-adjustable concealed hinge	Steel, aluminium, or timber frames, when the hinge model is specifically designed for that material and frame profile.	Many models allow adjustment in three directions: height, side-to-side, and compression or depth.	Usually requires accurately routed or machined recesses in both the door and frame. Recess size and edge clearance are model-specific.	Use the specified fixing method and fasteners. Check that the hinge body, adjustment screws, and door edge clear the frame and seals.	Heavy doors that need concealed hardware and on-site alignment after hanging.	Confirm door thickness, hinge count and spacing, opening angle, frame profile, and the published load rating for the intended configuration.
Weld-on concealed hinge	Weldable steel frames and steel doors; not suitable for aluminium or timber without a compatible mounting arrangement.	Often offers limited adjustment, or none after welding, depending on the design.	Requires a suitable steel substrate and carefully positioned hinge pockets or mounting plates. Protect nearby finishes from heat.	Requires suitable welding equipment and qualified installation. Align the hinge axis and protect the hinge from weld spatter and distortion.	Steel security doors, equipment enclosures, and fabricated assemblies where a permanent, concealed installation is required.	Check steel thickness, weldability, corrosion protection, hinge orientation, and whether adjustment is needed after fabrication.
Concealed pivot hinge	Floor- or head-supported assemblies with a compatible frame or support structure; some systems suit glass or metal doors using dedicated fittings.	Adjustment varies by system and may be available at the pivot, floor plate, or head fitting.	Needs accurate pivot-point positioning and, for floor-supported systems, a structurally suitable floor and prepared recess.	Verify that the floor, header, and fixings can support the specified loads. Follow the system’s alignment and clearance requirements.	Large or wide doors where pivot support is preferred to conventional side-mounted hinges.	Confirm door dimensions and mass, pivot locations, floor construction, opening direction, and required clearances.
Concealed cam-action hinge	Frames and doors with compatible hinge pockets; available designs differ for metal, timber, and other door constructions.	Some models provide adjustment and a cam mechanism that draws the door toward a closed position.	Requires the specified mortise or pocket depth and adequate space for the moving cam components.	Install to the manufacturer’s template and check the closing path for interference with the frame, seals, or adjacent hardware.	Doors that need a concealed hinge with a controlled closing or seating action.	Check door mass limits, closing action, handedness, opening angle, seal pressure, and compatibility with any closer or latch.
Heavy-duty concealed barrel-style hinge	Typically used with compatible metal or timber doors and frames; mounting options depend on whether the model is mortised, welded, or fastened.	Usually limited; some designs allow adjustment through an eccentric or adjustable pin.	Requires accurately aligned cylindrical or recessed preparations. Confirm that the remaining material around the pocket is sufficient.	Keep hinge axes aligned and use the specified fasteners or welding procedure. Test the full swing before final finishing.	Applications needing a compact, concealed hinge body and a straightforward pivoting action.	Verify pin orientation, maintenance access, corrosion resistance, door thickness, and the actual rated capacity for the selected model.

Selection note: There is no single load rating or frame preparation that applies to every heavy-duty hidden hinge. Use the hinge manufacturer’s current technical data and installation template. Confirm the rated door mass and dimensions, number and spacing of hinges, frame material and profile, fastener or weld requirements, clearances, and adjustment range before ordering.

Evaluate Durability, Safety, and Maintenance Needs

A heavy duty hidden hinge should match the door’s weight, width, and daily use—not just its appearance. Check the stated load capacity and whether it applies to a pair of hinges or each hinge. Repeated opening can loosen fasteners, especially in soft wood or thin door frames. Look for solid mounting points and materials suited to the room’s moisture level. A garage door and a dry interior cabinet have different demands. Small details matter.

Safety depends on stable support and controlled movement. Confirm that the hinge is installed to the maker’s specifications, with all required screws seated firmly. Check the closing path for pinch points, rubbing, or sudden drops. I still find clearances easy to overlook when a door looks aligned at rest. Test it through its full swing, then recheck after regular use. A smooth close is reassuring, but it does not replace inspection.

Tips: Every few months, open the door and look for loose screws, metal wear, or uneven gaps. Wipe away dust and moisture with a soft cloth. Use only a lubricant approved for the hinge; excess oil can collect grit. If movement changes or the door sags, stop forcing it and inspect the mounting points. Keep a note of the date and any adjustment made. This takes little time.
